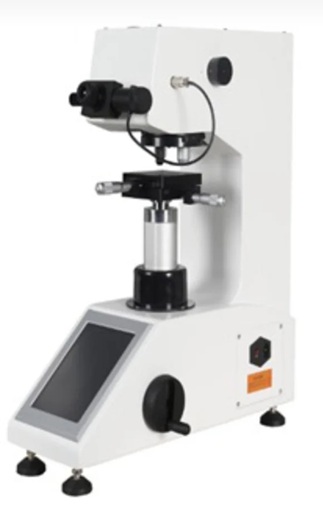

Digital Vickers Microhardness Tester Consultancy

About Micro-Hardness Measurement:

The Vickers microhardness test procedure involves applying a controlled load with a diamond pyramid indenter to a material, measuring the indentation, and then calculating the hardness value. The process typically includes preparation of the sample, applying the load, and measuring the indentation's diagonal lengths.

Scope of Services

Testing will be carried out using a Digital Vickers Microhardness Tester as per applicable standards such as:
- IS 1501 (Part 1)
- ASTM E384
- ISO 6507
The laboratory shall provide hardness value (HV) along with test load and dwell time.
Microstructural interpretation is not included unless specifically requested.

Specifications

Parameter	Details
Turret	Automatic Turret
Testing force	10g, 25g, 50g, 100g, 200g, 300g, 500g, 1000g
Test force error	±1.0%
Hardness scale	HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Loading speed	≤0.05 mm/sec
Indenter	Standard Rectangular pyramid diamond indenter (136º ±0.5º)
Min. measuring unit	0.25 μm
Hardness value range	5HV – 3000HV
Hardness Value of Reading	Digital LCD Screen
Eyepiece	10X manual Digital eyepiece
Objective lens	10X (Observe), 40X (Measurement)
Total magnification	100X (Observation), 400X (Measurement)
Loading method	Automatically (Load, dwell and unload the testing force)
Duration time	1–60 seconds (each step is 1 second)
Maximum height	90 mm
Throat depth	95 mm
Light Source	LED cold light source
Power Supply	220V ±5%, 50/60 Hz (110V available)
X-Y Testing Table	Dimension: 100 × 100 mm Max Travel Range: 25 × 25 mm Moving Resolution Ratio: 0.01 mm

Sample Submission Guidelines

The client shall submit properly prepared samples (polished and mounted, if required).
Recommended sample surface finish: mirror polished.
Sample thickness and dimensions must be suitable for indentation without distortion.
Number of samples and indentations per sample must be clearly specified.
Samples must be properly labeled.

Testing Charges

Client Category	Charge per Sample (₹)
Internal Faculty / Students	300/-
Academic Institutions	475/-
Industry	700/-

Payment Details

Name	Government Engineering College Palanpur
Bank	HDFC Bank Limited
Account Number	50100251088320
IFSC Code	HDFC0000335

Additional charges will apply for:

Sample preparation (cutting, mounting, grinding, polishing)
Urgent testing
Repeat testing
GST or applicable taxes shall be charged as per government norms.

Limitation of Liability

The laboratory is not responsible for: Damage during sample preparation (if requested), Improperly prepared samples submitted by client, Interpretation of results for design or failure analysis purposes
Results are valid only for the tested portion of the sample.

Reporting

The test report shall include: Sample identification, Test load and dwell time, Individual hardness values, Average hardness value, Date of testing, Authorized signatory
Reports are issued for the tested samples only and cannot be reproduced without written permission of the institute.

Sample Submission

Contact Person
Dr. Pradip Gajjar
Mechanical Engineering Department
Government Engineering College Palanpur
Mobile: 9099018547

Online Test Request

Download Test Request Form
